EX 21000 EQ – 1 OHM

Descrição

New EX21000 EQ – 1 Ohm from EXPORT LINE, the line of automotive amplifiers developed to delight Brazil and the World.
The New EX21000 EQ is an Amplifier for fans of #SomAutomotive or for competition lovers!

Designed for those looking for high performance and sound fidelity, this EX Line product brings the proven EQ Technology allowing individual equalization for the bands: Bass, Mid Bass and Mid High in addition to the traditional Level, High Pass and Low Pass

Frequency response from 10Hz to 10KHz

With more than 80% efficiency, the EX Line amplifiers are very economical, allowing the user to keep the sound playing longer.

It has the Over Clip feature that provides an additional 15% of final power before indicating the distortion through the Led Clip.

ESPECIFICAÇÕES TÉCNICAS
CARACTERÍSTICAS EX 21000 EQ – 1 OHM
Number of Channels1
RMS Power at 1 Ohm 12.6V21.000W RMS
RMS Power at 2 Ohm 12.6V12.800W RMS
RMS Power at 4 Ohm 12.6V8.000W RMS
RMS Power at 1 Ohm 14.4V23.000W RMS
RMS Power at 2 Ohm 14.4V14.200W RMS
RMS Power at 4 Ohm 14.4V9.000W RMS
Frequency Response10Hz ~ 10 KHz
Crossover Low Pass10Hz ~ 10 KHz
Crossover High Pass50Hz ~ 700 KHz
Signal to Noise>90dB
Harmonic Distortion< 0,9% THD
Input Sensitivity0,2V
Input Impedance25K OHMS
Impedance Output1 OHM
Consumption with Signal Musical5,8 ~ 990A
Consumption with Signal Bass5,8 ~ 1980A
Dimensions (H x W x D) mm77 x 294 x 614 mm
Weight Kg9,8 Kg

DICAS DE COMO O EX 21000 EQ – 1 OHM
STETSOM PODE SER INSTALADO

Produtos - RELACIONADOS

EX 1600 EQ – 2 OHMS

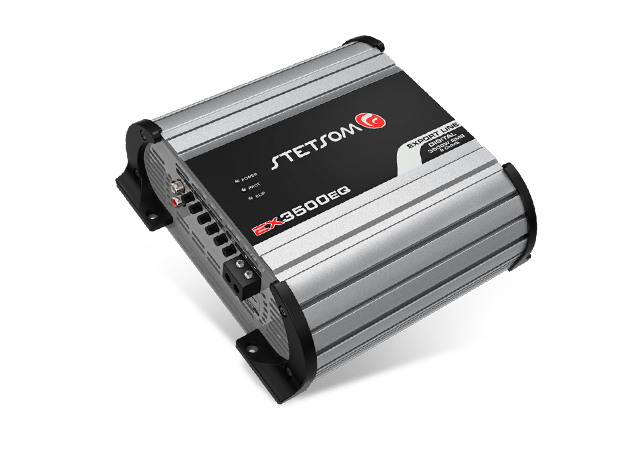

EX 3500 EQ – 2 OHMS

EX 1600 EQ – 1 OHM

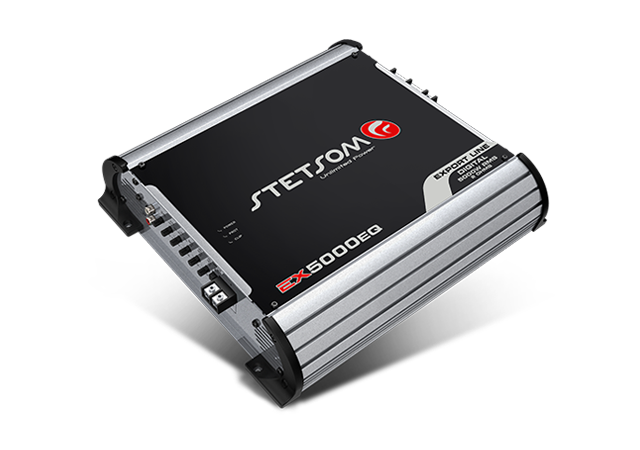

EX 5000 EQ – 2 OHMS

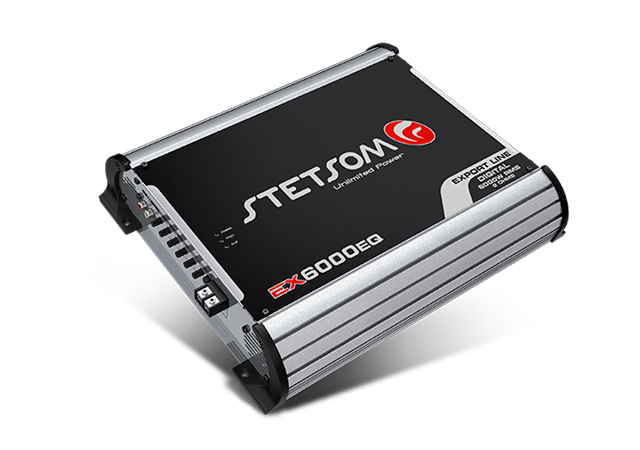

EX 6000 EQ – 2 OHMS
