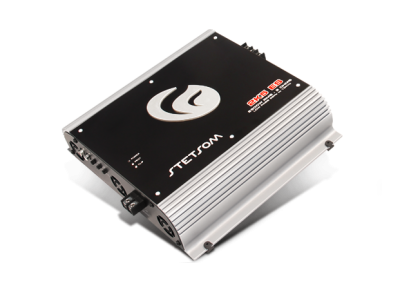

2K5ES – 1 Ohm
DESCRIPTION
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | 2K5ES – 1 Ohm |
|---|---|
| Number of Channels | 1 |
| RMS Power at 1 Ohm 12.6V | 2500 Watts RMS |
| RMS Power at 2 Ohm 12.6V | 1850 Watts RMS |
| RMS Power at 4 Ohm 12.6V | 1100 Watts RMS |
| RMS Power at 1 Ohm 13.8V | 3330 Watts RMS |
| RMS Power at 2 Ohm 13.8V | 2200 Watts RMS |
| RMS Power at 4 Ohm 13.8V | 1300 Watts RMS |
| Supply Voltage | 9 a 15V |
| Frequency Response | 20 Hz a 15 KHz |
| Crossover Low Pass | 50 a 15 KHz |
| Signal to Noise | > 90 dB |
| Harmonic Distortion | < 0,9 % THD |
| Input Sensitivity | 0,2V |
| Input Impedance | 20K OHMS |
| Impedance Output | 1 Ohm |
| Consumption with Signal Musical | 2,5 a 140 A |
| Consumption with Signal Bass | 2,5 a 275 A |
| Subsonic Filter | 20 a 80 Hz |
| Dimensions (H x W x D) mm | 75 x 310 x 310 |
| Weight Kg | 4,3 Kg. |
