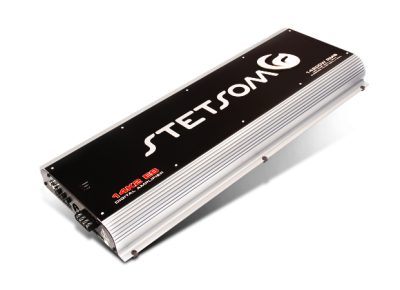

14K2ES – 1 Ohm
DESCRIPTION
TECHNICAL SPECIFICATIONS
| CHARACTERISTICS | 14K2ES – 1 Ohm |
|---|---|
| Number of Channels | 1 |
| RMS Power at 1 Ohm 12.6V | 14.200 Watts |
| RMS Power at 2 Ohm 12.6V | 8.050 Watts |
| RMS Power at 4 Ohm 12.6V | 4.350 Watts |
| RMS Power at 1 Ohm 13.8V | 16.200 Watts |
| RMS Power at 2 Ohm 13.8V | 11.200 Watts |
| RMS Power at 4 Ohm 13.8V | 5.300 Watts |
| Supply Voltage | 9 ~ 15V |
| Frequency Response | 15Hz ~ 8KHz |
| Crossover Low Pass | 50Hz ~ 8KHz |
| Signal to Noise | > 90 dB |
| Harmonic Distortion | <0,9% |
| Input Sensitivity | 0,2 V |
| Input Impedance | 20K Ohms |
| Impedance Output | 1 Ohm |
| Consumption with Signal Musical | 7,3 ~ 600A |
| Consumption with Signal Bass | 7,3 ~ 1200A |
| Subsonic Filter | 20 ~ 80Hz |
| Dimensions (H x W x D) mm | 75 x 310 x 792 |
| Weight Kg | 13 Kg |
