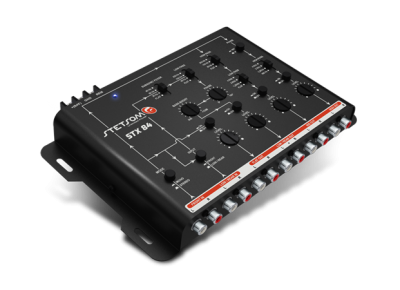

STX84

STX84

TECHNICAL SPECIFICATIONS

CHARACTERISTICSSTX84
Via High12 dB/8ª (4KHz/2KHz/1,2KHz/900Hz) PHASE 0º / 180º
Via Mid12 dB/8ª LO FREQ (4KHz/2KHz/1,2KHz/FLAT) HI FREQ (250Hz/150Hz/80Hz/FLAT)
Via LowLO FREQ (250Hz/150Hz/80Hz/FLAT) Subsonic Filter 24 dB/8ª (20Hz/30Hz/40Hz/FLAT) PHASE 0º e 180º (20Hz a 200Hz) Bass Boost (25Hz - 110Hz) (0 - +12dB; 50Hz)
Maximum Output Voltage9V RMS
Maximum Input Voltage4V RMS
Signal to Noise>90dB
Input Impedance10K OHMS
Harmonic Distortion< 0,02% THD
Channel Separation> 80dB
Frequency Response20Hz - 200Khz
Supply Voltage10V - 16V DC
Current Consumption0,25A MAX
Impedance Output50 OHMS
Dimensions (H x W x D) mm33 x 236 x 160 mm
Weight Kg700g
