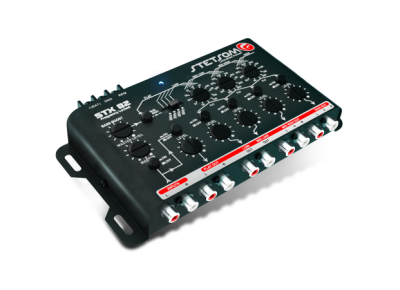

Crossovers - STX82

(Português) Frequency Locked

Description

Sorry, this entry is only available in Brazilian Portuguese.

Technical Specifications

Features STX82
Maximum Output Voltage9V RMS
Maximum Input Voltage4V RMS
Signal to Noise>90dB
Input Impedance13K OHMS
Harmonic Distortion< 0,02% THD
Channel Separation> 80dB
Frequency Response10Hz - 35KHz
Supply Voltage10V - 16V DC
Current Consumption180 mA
Impedance Output50 OHMS
Dimensions (H x W x D) mm34 x 119 x 208mm
Weight Kg460g
