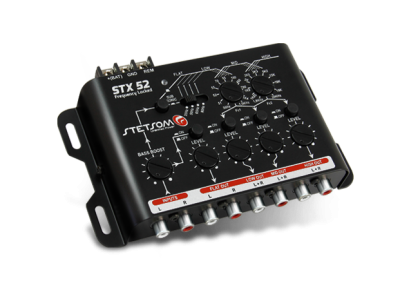

Crossovers - STX52

Description

Sorry, this entry is only available in Brazilian Portuguese.

Technical Specifications

Features STX52
Maximum Output Voltage9V RMS
Maximum Input Voltage4V RMS
Signal to Noise> 90dB
Input Impedance13 K OHMS
Harmonic Distortion< 0,02% THD
Channel Separation> 80dB
Frequency Response10Hz ~ 35KHz
Supply Voltage10Vdc a 16Vdc
Current Consumption180mA
Dimensions (H x W x D) mm34 x 109 x 167mm
Weight Kg350g
