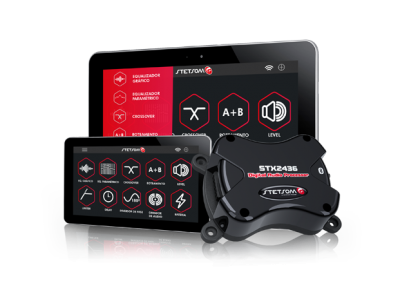

Audio Processor - STX2436 Bluetooth
(Português) LIBERDADE, é ter processamento de áudio a distância.
Description
Technical Specifications
| Features | STX2436 Bluetooth |
|---|---|
| Number of processors (DSPs) | 1 |
| Input Channels | 2 |
| Output Channels | 4 |
| Output Gain: | ✔ |
| Master Level | 0 ~ 100% |
| Graphic Equalizer | 15 Bandas (Band), Ganho (Gain) ±12dB |
| Graphic Equalizer presets | 12 |
| Parametric Equalizer Input | 1 |
| Parametric Equalizer Output | 1 / Output (Total: 4 ) |
| Routing | A,B / A+B |
| Crossover Butterworth (dB/8ª) | 12/18/24/36/48 |
| Crossover Linkwitz-Riley (dB/8ª) | 12/18/24/36/48 |
| Limiter | ✔ |
| Automatic Attack/Release | ✔ |
| Manual Attack/Release | ✔ |
| Delay | 0 ~ 8ms (275cm) |
| Frequency Generator | ✔ |
| Frequency scan | ✔ |
| Security Password | ✔ |
| Frequency Response | 10Hz ~ 22,5KHz @ -1 dB |
| Latency | 1,08 ms |
| Signal to Noise | >90 dB |
| THD | <0,01% |
| Channel Separation | >80 dB |
| Maximum Input Voltage | 5,6 Vpp (+8,2 dBu) |
| Maximum Output Voltage | 5,6 Vpp (+8,2 dBu) |
| Supply Voltage | 10V ~ 15V DC |
| Dimensions (H x W x D) mm | 34 x 74 x 110 mm |
| Weight Kg | 0.130 |
