Crossovers - STX104

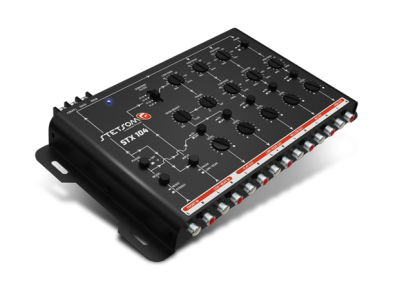

STETSOM STX104

(Português) CONTROLE TOTAL PARA O SEU SOM!

Technical Specifications

Features STX104
Via High400Hz - 10KHz (12 dB/8ª)
Via Mid150Hz - 12,5KHz (12 dB/8ª)
Via Low70Hz - 10KHz (12 dB/8ª)
Maximum Output Voltage9V RMS
Maximum Input Voltage4V RMS
Signal to Noise>90dB
Input Impedance10K OHMS
Harmonic Distortion< 0,02% THD
Channel Separation> 80dB
Frequency Response20Hz - 200Khz
Supply Voltage10V - 16V DC
Current Consumption0,25A MAX
Impedance Output50 OHMS
Dimensions (H x W x D) mm33 x 264 x 160 mm
Weight Kg780g
