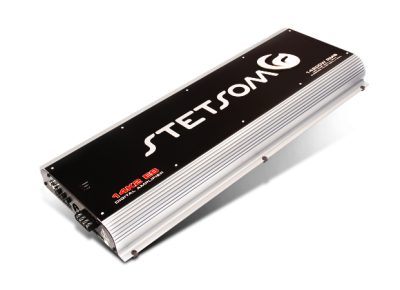

    Vulcan - 14K2ES – 1 Ohm

    VULCAN_14K2_ES

    + Technical Specifications

    Features14K2ES – 1 Ohm
    Number of Channels1
    RMS Power at 1 Ohm 12.6V14.200 Watts
    RMS Power at 2 Ohm 12.6V8.050 Watts
    RMS Power at 4 Ohm 12.6V8.050 Watts
    RMS Power at 1 Ohm 13.8V16.200 Watts
    RMS Power at 2 Ohm 13.8V11.200 Watts
    RMS Power at 4 Ohm 13.8V5.300 Watts
    Supply Voltage9 ~ 15V
    Frequency Response15Hz ~ 8KHz
    Crossover Low Pass50Hz ~ 8KHz
    Signal to Noise> 90 dB
    Harmonic Distortion<0,9%
    Input Sensitivity0,2 V
    Input Impedance20K Ohms
    Impedance Output1 Ohm
    Consumption with Signal Musical7,3 ~ 600A
    Consumption with Signal Bass7,3 ~ 1200A
    Subsonic Filter20 ~ 80Hz
    Dimensions (H x W x D) mm75 x 310 x 792
    Weight Kg13 Kg
